Building a 13 Course Lute, Start to Finish, 15: Bending, Fitting and Gluing the Fingerboard

Dear Friends,

How are you all doing? Since I last posted here, the world seems to have changed in a pretty fundamental way. Where I live and work, in Vancouver, Canada, we are not yet on 'lockdown,' but I think we must anticipate it's coming soon. Until then, I continue to work, to go to my little shop in the morning and live my day and make my lutes. What else am I to do? What else are you to do? Two things keep me focussed in this time of great uncertainty: one is my love for my fellow people, from the one who is closest to me, Julia, the love of my life, and radiating outward to my family, my loved ones, my friends everywhere, all over the world; and the other is making lutes. Sometimes such work can seem trivial even to me, but lute making shapes my life and lets me live in beauty every day. I treasure it, and I know how lucky I am to be able to continue to do it.

I hope you all, my friends, have work and love to sustain you throughout the times of crisis.

Humbly, I celebrate my work today, and invite you to share in it.

Lutes need fingerboards, and 13 course lutes need curved fingerboards. Let us give one to this (very patient) lute.

The fingerboard points have been installed. The arrows indicate that I have oriented the pieces so that I'll be able to plane them toward the nut.
I use the low-angle block plane (with a lot of wax on the sole) to plane them almost flush with the belly tongue, in preparation for making the belly cut-off.
I mark a line with a sharp, soft pencil, and then make the cut freehand. The saw cuts pretty readily down into the spruce, so the kerf is well established and jigs the cut as I rock the saw forward and back to cut into the ebony points.

I remove the spruce first with a sharp chisel. Note a couple of things: first, along the nut-side of saw kerf I have chamfered the spruce so that when I pry it up I won't damage the opposite edge; and second, I've made parallel knife cuts along the grain so that the excess comes up in smaller pieces, rather than one big chunk. (I also did that when I removed spruce belly material to install the fingerboard points.)

I remove the excess of the fingerboard points by using a small cut-off chisel and cutting across the grain, from the outer edge in. The ebony I'm using is very tough stuff, with swirling, interlocked grain, and it's difficult to cut. To minimize the danger--to myself, and to the lute--I keep the chisel edge under very close control, making very small movements and taking very small cuts. (The lute, by the way, is also securely clamped in place on my bench.)
I use files to remove the last of the ebony and paper glued to the neck, and then use files to true up the  cut-off edge. That edge needs to be as flat as possible, and as perpendicular as possible to the neck surface. It's not easy to do this when dealing with the curved cut-off (after all, it's difficult to hold a straight edge against it to see how flat the edge is), by I try to get it as close as I can.

When I've readied the joint, I can try out the fit of my fingerboard gluing caul. I made this shaped caul a number of years ago, and I've used it for a number of 13 course baroque lutes already. The fit looks pretty good; if it were not, I would build up the shape as needed with strips of masking tape.
The curve looks like a very close match. As you can see, I've lined the caul with a thickness of cork. I've also made the caul so that it overhangs the edge of the neck by a few millimetres on each side.
I'll take time out here to tell you a little trick of the trade I use to make cauls with complex shapes, like this one. Do you see the little layer of pink between the cork and wood in the photo above? That pink layer is autobody filler. To make the caul I first carve the wood as close as I can to the shape I want; then I cover the object-area on the instrument (in this case, the upper surface of the neck) with plastic wrap; then I mix up some autobody filler, spread it on the underside of the caul, and either hold it or clamp it in place. The filler dries in a few minutes, and I'm left with a near-perfect impression of the area that I can trim as needed, then cover with a layer of cork and use as a gluing caul.

The large main caul was made for a lute designed to have a slightly shorter neck than this one. I've made a small addition to add to the lower part of the fingerboard.
After re-checking the action (with fishing line and spacer blocks), I have thicknessed the fingerboard to about 2.6mm. In this photo I am shooting the edge of my fingerboard blank, looking to make it as flat and as perpendicular as possible.

I can now bend the fingerboard blank. I heat water in a saucepan and brush it on the outside of the piece, then hold the underside over the hot plate. After a few minutes, the combination of outer expansion from the water and inner contraction from the dry heat curls the fingerboard very close to the profile that I'm looking for.

Throughout the construction process, there is a hook for hanging the lute in the neck end. Now, I swap out that hook for this hardwood block and deck screw. When I fit and glue the fingerboard, I can tighten the screw, and the block provides pressure to hold the fingerboard in place against the cutoff joint.

Like so. This is a dry run, to see how the fit looks at the joint. I trim the fingerboard so that there is about 1mm only of overhang at the nut end. That's enough for me to tighten the block and hold the fingerboard in place.

I refine the fit with a sanding block. I may also have to adjust--with files--the fingerboard cutoff on the lute.

I've got the joint fitted, and everything is ready to go. When I actually glue the fingerboard on I need to work quickly and efficiently, so there is no time to take timed photos.The next few shots show the stages of gluing, and are from one of the many dry runs I do before gluing up.

When my glue is heated and ready to go, I warm the underside of the fingerboard and the top side of the neck with a hair dryer.

I then brush glue on the neck, and on the underside of the fingerboard, and place it carefully. I need to make sure the fit is tight here, at the joint.

I then screw in the block to hold the fingerboard firmly against the cutoff joint.

Then I begin clamping. (I rehearse the sequence many times before gluing.) First I clamp in place the small additional caul...

And then the big caul goes on. Note how I have marked with a felt pen the location and the orientation of each clamp. I know where they go, and which way they point, so I can begin by clamping in the middle, and then working outward from there.

This nearly exhausts my supply of wooden cam clamps.

Here's the immediate aftermath of gluing. I got good squeeze-out on each side, and I also brushed a line of glue down each side of the joint (to take advantage of hide glue's contracting properties, to pull the edges of the joint together.)

The lute seems most stable in this position for the time being (though it seems a bit close to the edge of the bench--I think I should move it more to the centre before leaving for the day.) Tomorrow I'll remove the clamps and cauls, clean up the excess glue, and start to shape the new fingerboard.

I hope everyone is staying safe and secluded. I love you all. Take care, and we'll talk again soon.








Sunday 8 March 2020

Building a 13 Course Lute, Start to Finish, 14: Soundboard Details in Ebony

Hello friends, and welcome back, after a bit of a break. There's a bunch of stuff to do that has a bunch of small steps, so let's get right to work.

Today I'll be dealing with the aftermath of the 'Great Glewing' of 2019, wherein I stuck the belly into this 13 course lute-in-progress. I'll be trimming the belly edge, installing the ebony half-binding, and inlaying fingerboard points and an ebony spade at the bottom of the belly.

You'll remember that in gluing the belly I used half-strength glue, and was also careful not to slop too much of it around. This makes cleanup pretty simple: I brush a bead of water around the narrow belly overhang, wait a few minutes, and clean up with a sharpened spruce stick.

Then I can trim the edge of the belly flush to the outside rib.
My knife blade has a sharp edge but also a fairly full cheek, which allows me to take a fine cut without the knife 'digging in.' I wrap a piece of masking tape around the tip, to guard against accidental nips into the edge rib.
I have to reverse cutting directions to follow the grain of the belly.
I must say I find this one of the most satisfying and meditative jobs in all of my lute making. If I've sharpened the knife correctly, I can trim the belly edge and get really close to the rib without worry.
That's true even at the bottom end of the belly, where the end grain can sometimes be tough to cut. However, with my knife I can get close enough that all I will need to do to finish off is a bit of work with a file.
At the body-neck joint, the result I want is a tight corner where the edge rib and neck edge meet. (I'm not quite there yet in this photo.)
At the tips of the capping strip, I leave the belly edge untrimmed for the moment. I need to do some careful work to taper the end of the capping strip, and integrate that shape into the outline of the belly.
To get a good idea of what that final shape should be, I lay my belly template down and with a sharp soft pencil trace around it where the ends of the capping strip bump out.
I'll use this mark as a guide as I shape the area, mainly with a series of files.
Here's the contour as I begin my shaping work. At this point, the capping strip is its full thickness, and the belly overhangs the edge rib slightly.
Here's my pretty-close-to-finished result.
At the leading point of the capping strip I've tapered the thickness almost (but not quite) to zero, while the upper edge (closest to the camera) I've left pretty much full thickness. I've also tapered the thickness of the capping strip back from the tip, toward the bottom of the lute, for approximately 2 to 3 inches.

With the outline finalized, I'm ready to inlay the ebony edge binding. I clamp the lute in the neck holder to keep it very steady.

Some tools of the trade. The one in the middle is a purfling cutter I made with a piece of square steel tubing (it was one of the first lute making tools I ever made for myself.) The bottom of the tool is toward us; the fence is on the left side of the tool as we face it; the blade is a couple of millimetres distant from it (only the merest tip pokes out.)


Another view...

And another. I'm proud of this tool. I made it at a time when I didn't have too many resources at my disposal, and it's worked like a charm for years. Decades, now, in fact.
And so I'll put it to work once more. The belly's between about 1.5 and just over 2mm at various places along its edge. I want to inlay a binding about half that thickness--say, 0.8 or 0.9--which is how deep my rebate needs to be. The purfling cutter is set ever-so-slightly deeper than this.

Three or four careful passes around the perimiter brings the cut to full depth.


At the body-neck joint the fence on the edge of the tool prevents it from going all the way into the corner, so the end of the cut needs to be made by hand.

Next step is to cut the rebate, which I do with this handy shop-made Dremel router base.
If you're interested, I wrote a blog post about how I made this base a few years ago. It's another source of pride with me. Please have a look!

One shot of the router in action. I make three or four passes, lowering the cutter a bit each time, until I get to the full depth I want.
I set the router to cut a bit narrower than the line I made with the purfling cutter. The router leaves a burred edge, which I can then cut away with a sharp small knife. This leaves the purfling cutter line as the smooth inner edge of the binding channel.
The router won't reach into the body-neck joint, so I have to use a chisel to cut the rebate there.
Before I can actually install the ebony binding, I need to inlay the ebony dart at the bottom of the belly that's part of the spade. I shape the dart with this handy drill-press drum sander.
The heart-shape inlay, however, I like to shape by hand at the bench.
Here's the set, ready to go.

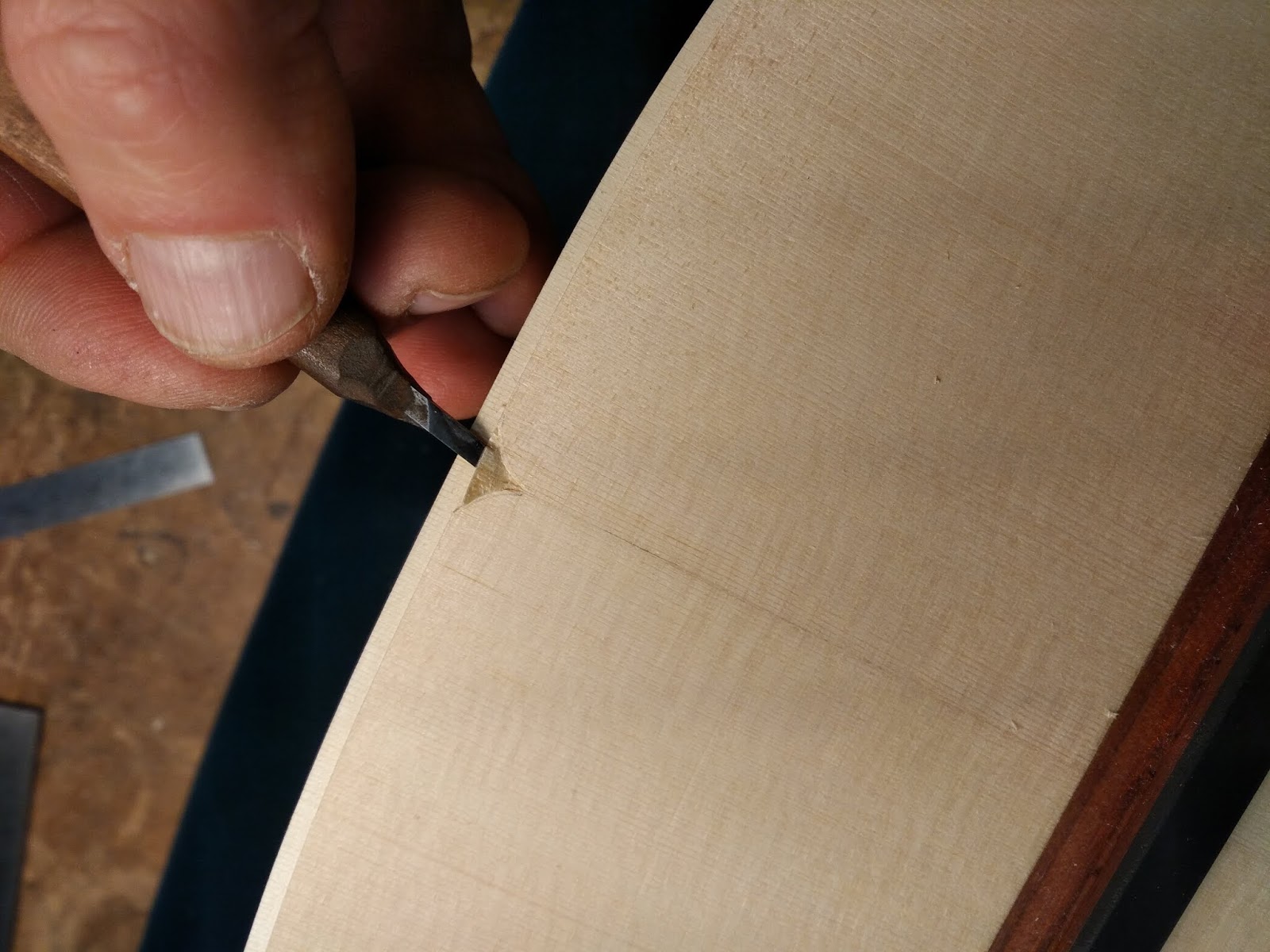

I trace around the shape with a sharp, soft pencil, then make vertical cuts with my rose chisel.


The dart is inlaid about as deep as the binding will be.

Chisels, knives and small files get a good fit. Then I cut the dart away from the larger piece of ebony veneer, and glue it in place.


Next day, I file the piece flush. I make sure to keep the blind/ blank edge of the file down, so I don't go filing away my carefully-made binding slot!

That looks fine. I test how flush the edge is by holding a small piece of my ebony binding in the slot, and seeing if it bends smoothly around the whole area.

This shows the area of the body-neck joint. Two details are worth noting here. First, I've cut a little notch for the binding to fit into at its very end--this is kind of an 'overflow' area for a small bit of excess length in the binding when I glue it in. Second, I've masked off the soundboard in the area just beside the binding channel. This, I've found, helps immensely with glue cleanup the day after the binding has been installed. (As always, though, I'll need to be very careful removing that tape so that I don't tear out wood from the belly.)


I can't go into too much detail here about how I make my ebony bindings, but in brief: I cut sheets of ebony veneer in the bandsaw, then thickness-sand them to a precise thickness, then cut strips from the sheets with the purfling cutter that was shown above. Then I size them up to a pretty specific dimension in my pull-through scraper. It's not rocket science, but it is a bit of work, and I try to do it in fairly large batches every few years.

Here's my bending iron, showing the modifications I've made to accommodate bending spacers (for lute backs) and ebony bindings. If you'd like more detail about how I modified this bending iron, I wrote a blog post about it a couple of year back. Please have a look!

Water is essential in bending these bindings. So is the very highest heat setting on the bending iron.

I don't bend the whole binding exactly to shape--I count on it being flexible enough (at least where the curve is long and shallow) to conform to the shape when I glue it in place. However, I overbend slightly at the top of the shoulder, near the body-neck joint, so that I'm sure the very tip will pull into place when I glue up.

I also bend fairly closely around the tightest part of the curve.
Here's my setup for gluing in the binding.

Here's the beginning of my gluing routine. I've squared off the end of the binding, and located the end pretty close to the centreline of the belly. Then I tape the binding in place with one piece of masking tape, a few inches away. I lift the end of the binding and brush glue under it, then tape it in place all the way along. Then I remove the original location tape, lift the binding, and continue forward brushing glue and taping. I work in segments of two or three inches, so I can always keep a fresh glue edge going forward.

Must confess, I use a fair bit of masking tape to do this work. Especially around the tightest part of the curve, overlapping the tape in this way exerts a nice, even pressure to pull the binding tightly into the channel.

A look at the end of the piece. Note that I've cut the binding just a bit over-long, and that extra length fits into the cut-out area. (The binding tip will be cut away when I install the fingerboard points.)

Second verse, same as the first! With the exception that before I can glue in the second binding, I need to fit it very closely with the squared-off end of the one that I just glued in.

Would Magno Tieffenbrucher recognize this mass of masking tape? One of the eternal, unanswerable questions I ask myself every day in the workshop.
Next day, I remove the masking tape very carefully, and clear away the glue with water. Later in the day, if the belly's nice and dry--or the next day, if it's not--I'll inlay the ebony heart.

The way I originally learned how to do this was to spot-glue the piece to the belly, and trace around it with a knife; but I find that a  piece of double-sided tape works just as well. I cut through the tape, into the belly itself.

This leaves an outline that I first deepen...
... and then cut toward, with my rose knife. I deepen the recess, and make sure it's quite flat-bottomed (using a small, flat scraper) before gluing the inlay.

The finished result.
Now I can scrape flush the spade and the binding, in preparation for installing the fingerboard points. (Note the masking tape on the back corner of the scraper, which prevents the scraper digging in to the belly.)
Here are both points, before shaping. I've glued two book-matched pieces of ebony together, and will shape them in this form so that they are identical. I've glued a piece of paper between them so that they will be easier to separate once they're shaped. The arrow I've drawn indicates the direction in which the material planes best; this enables me to orient the piece so that I can plane it from the body toward the nut.

I shape the piece first by shooting the inner edge, which will be my main reference when I lay out the location on the lute. The curved edge is shaped using the drum sander.
You might notice that the tip of the 'point' is not exactly pointy--that is, I've angled the tip a little. I don't know where this shape comes from--I think I must have learned it from Grant Tomlinson, my teacher, but I don't know where he got it from, and I don't know if he uses it for all the points on all his lutes. I know I do--I think it's a bit elegant, and gives a sort of 'finish' to the piece. Also, I've seen a lot of modern and ancient lutes with pointy-points, and those pointy-points seem to have a tendency to crack the belly. I fancy that this way of shaping the point won't do that. That's the theory at least...

Exhibit A: the 1612 Tieffenbrucher in Bologna (photo courtesy Grant Tomlinson.) Will my work fare any better? Ask me in about 400 years.

I split the two points apart by soaking in a dish of water for a few minutes, then prying carefully with a palette knife. I then wash the paper and glue off.
There's one additional step I need to do with the points before they can be fitted, and that is to bend them slightly. Since the neck surface on which they'll be fitted and eventually glued is curved, to ensure a good fit they need to be curved too. While they're wet, I simply hold them against the bending iron, and apply a little pressure with a couple of cork blocks. I'm bending them across the grain, so the points bend very easily.

 I locate the points by laying a straightedge on the neck and down onto the belly. (The inside edge of the point basically follows the taper of the neck.)

I lay the flat edge of the point against the straightedge, and position the curved edge exactly at the body-neck joint. I trace around the curved edge with a soft, sharp pencil, then remove the point and use a sharp knife against the straightedge to cut down into the belly.

You can see the result here. The long straight inside edge is already cut, and now I'll use my rose chisel to cut just inside the traced line.

I can't use the rose chisel on ebony, so I must cut away most of the  excess binding with a razor saw.
I can then clear away the excess material, and start fitting the point.
Getting a good fit on the point is not an easy thing, and it can be a bit of a time-consuming job. However, there are a couple of principles that I keep in mind that help me to do it. The first one is, the long straight cut I made against the straightedge must be made absolutely flat first (a chisel laid on its side, as well as files, are the tools for this job.) After that, the point will slide along that surface into position, and all I've got to worry about is fitting the curved edge--which is largely a matter of using some fine files, and being very patient. The second principle I keep in mind is that the very tip of the point is not fitted by cutting away material across the grain--instead, I make small cuts with a rose knife along the grain. Then as the fitting process goes along, I gently tap the point into position with a hammer, and the tip of the point compresses those fibres. I can get a very tight fit in this way.



There's my fit. Time to heat up the glue!


This shows the immediate aftermath of gluing. If the points are well fitted, I don't need to worry about using an elaborate clamping system--I can just put glue in the recess, tap the point into position, and tape the points down securely.
And this is my result, the next day, with the excess glue removed. Now I'm ready to fit and glue the curved fingerboard, which will be the subject of my next post.
